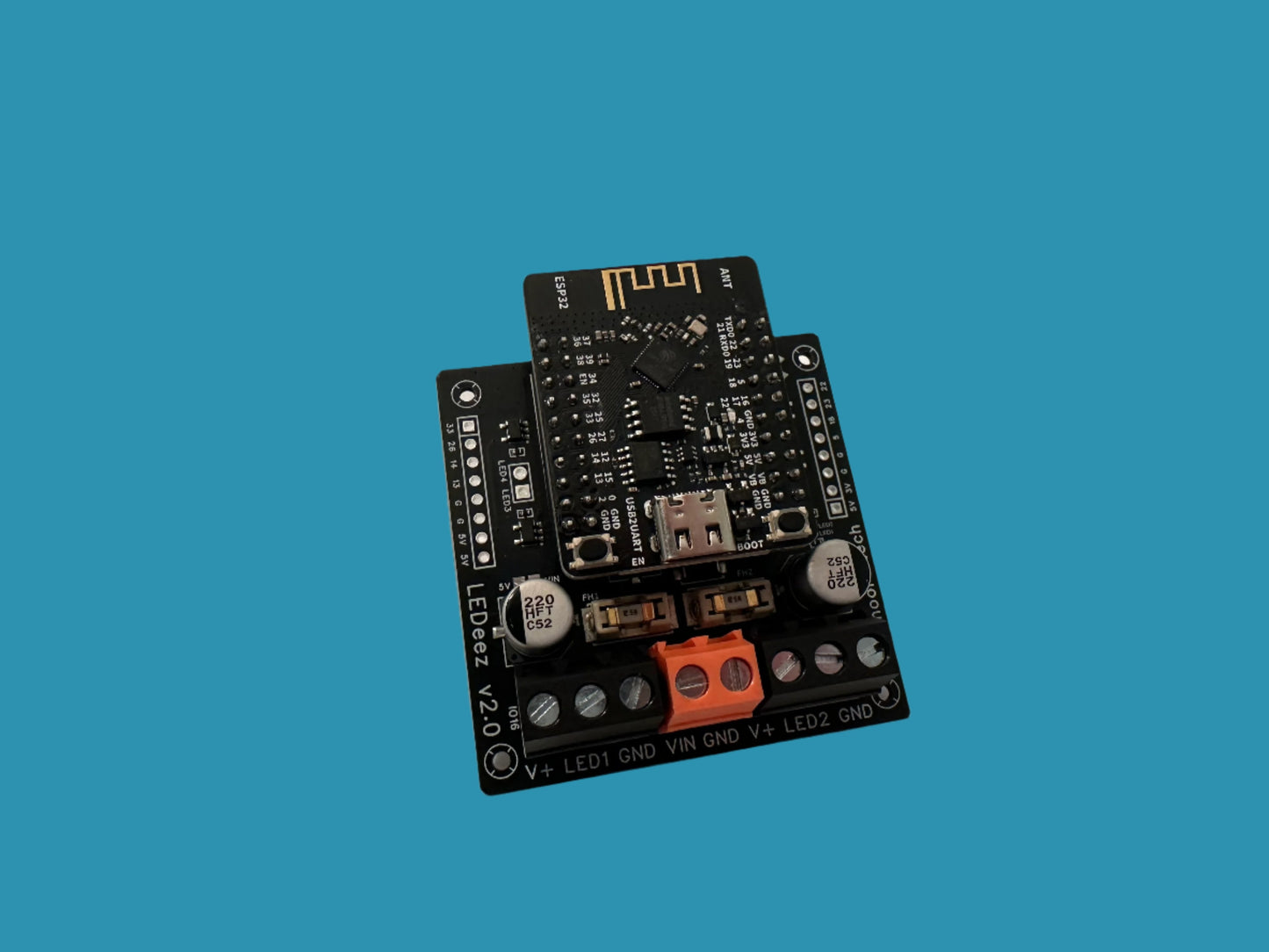

LEDeez v2.0

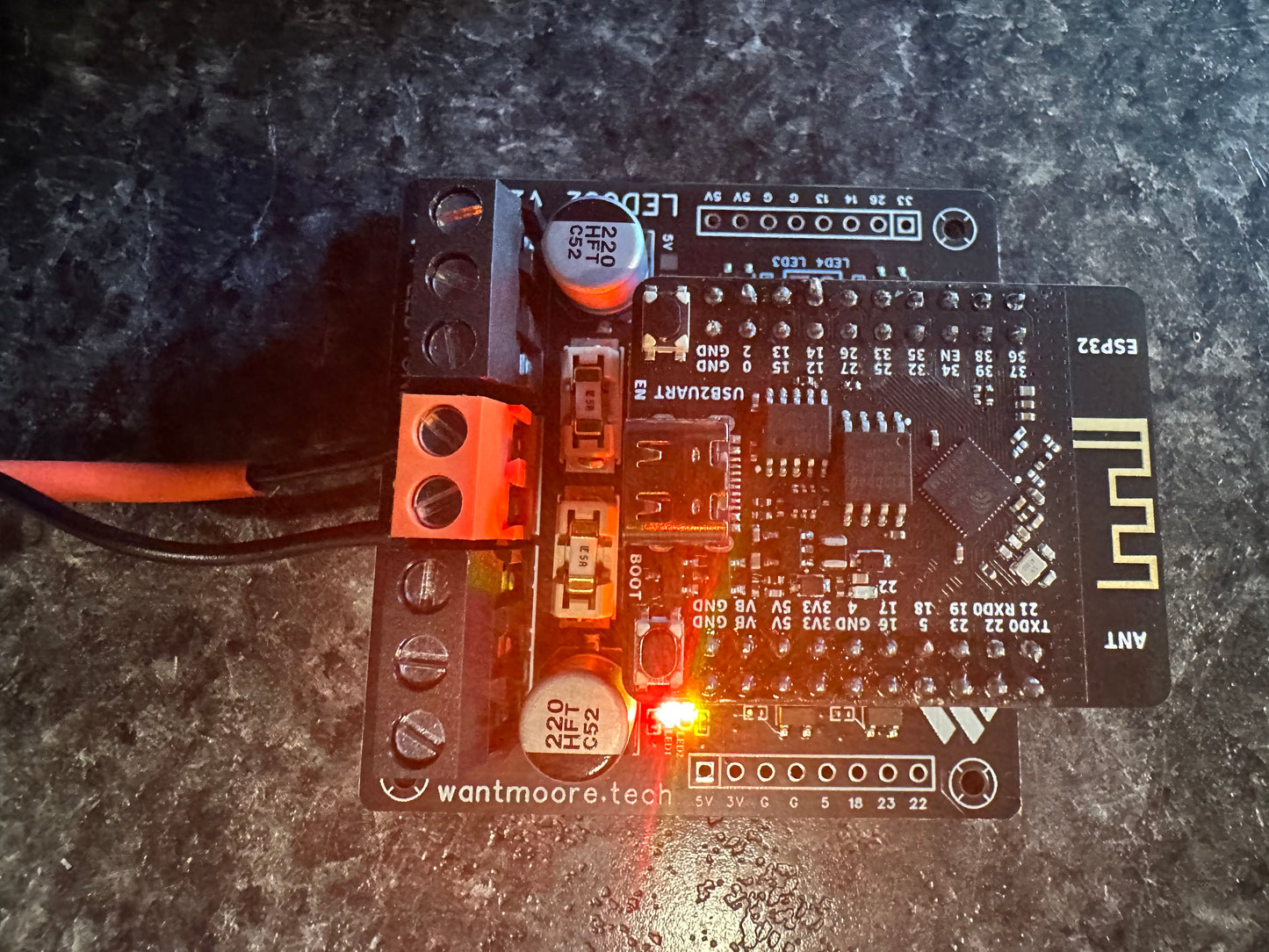

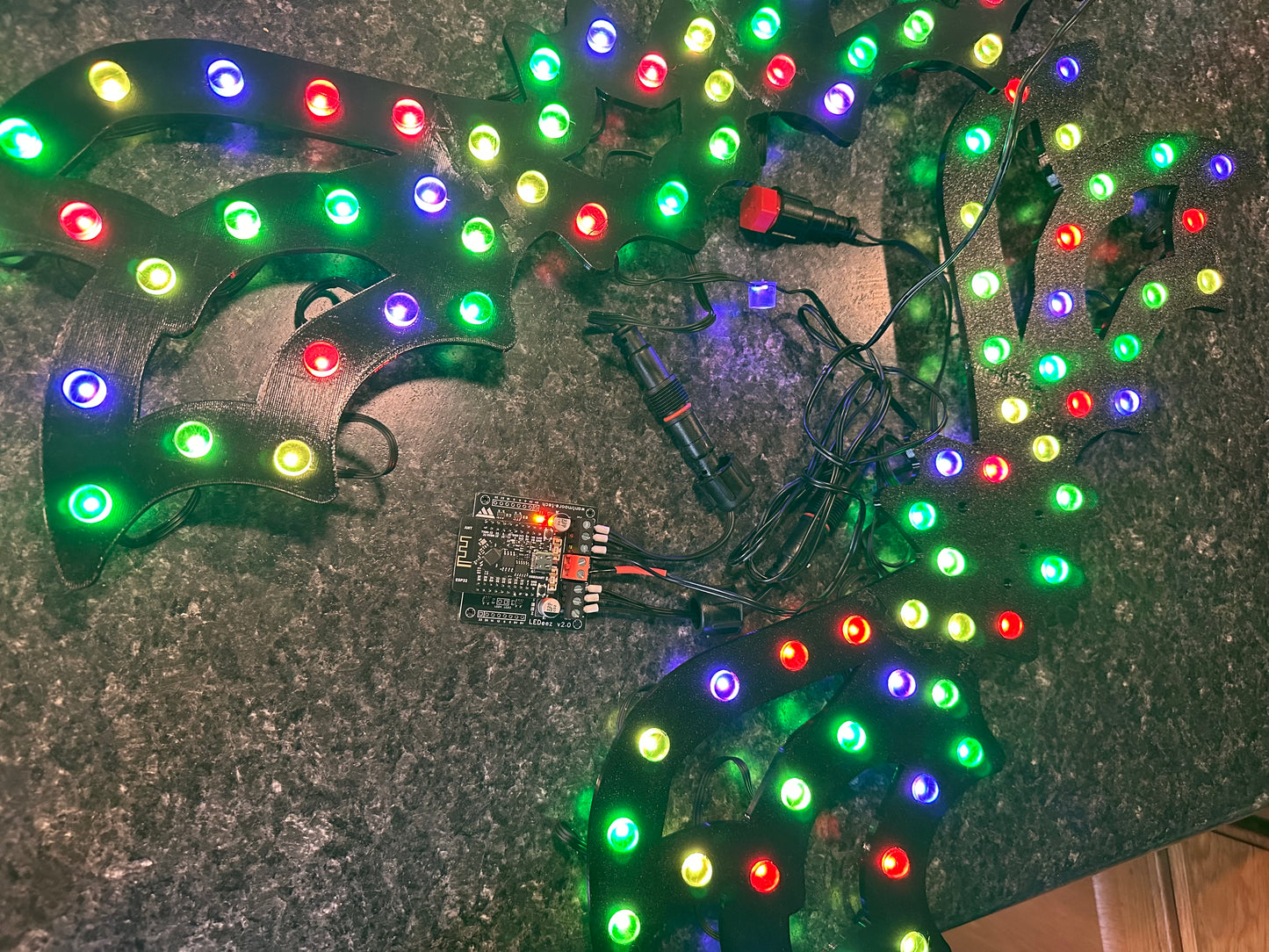

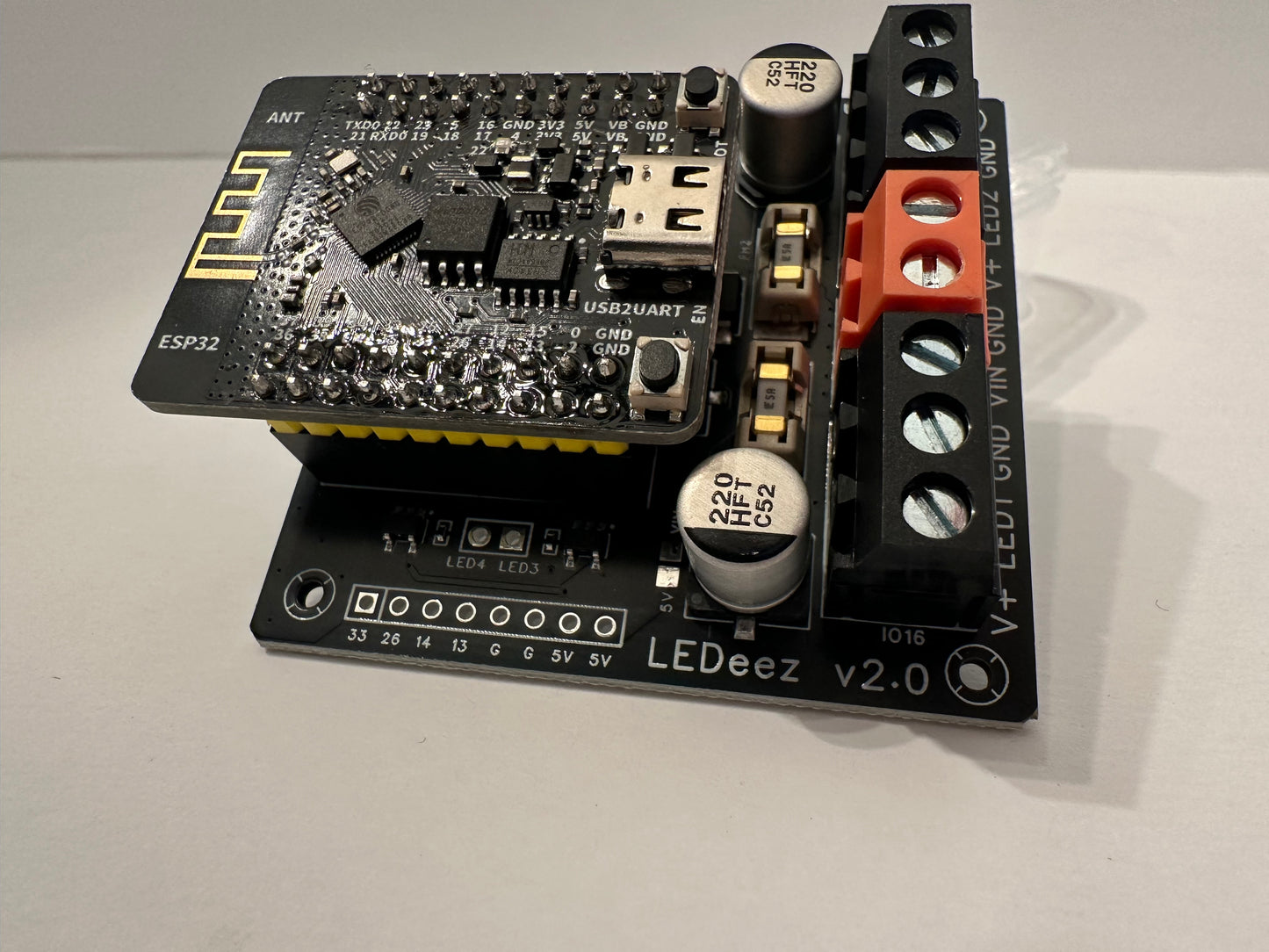

LEDeez v2.0 is an ESP32-D0WD-V3 based addressable LED controller with 8MB of onboard flash. The board is designed for 12V or 24V input to control addressable LEDs such as the WS28xx & SK6812 LEDs. There is plenty of additional GPIO available for whatever you can dream up. Two primary LED outputs are ready to go and available on the terminal blocks while LED3 & LED4 outputs have a solderable pad available. These two outputs are also great for driving relays.

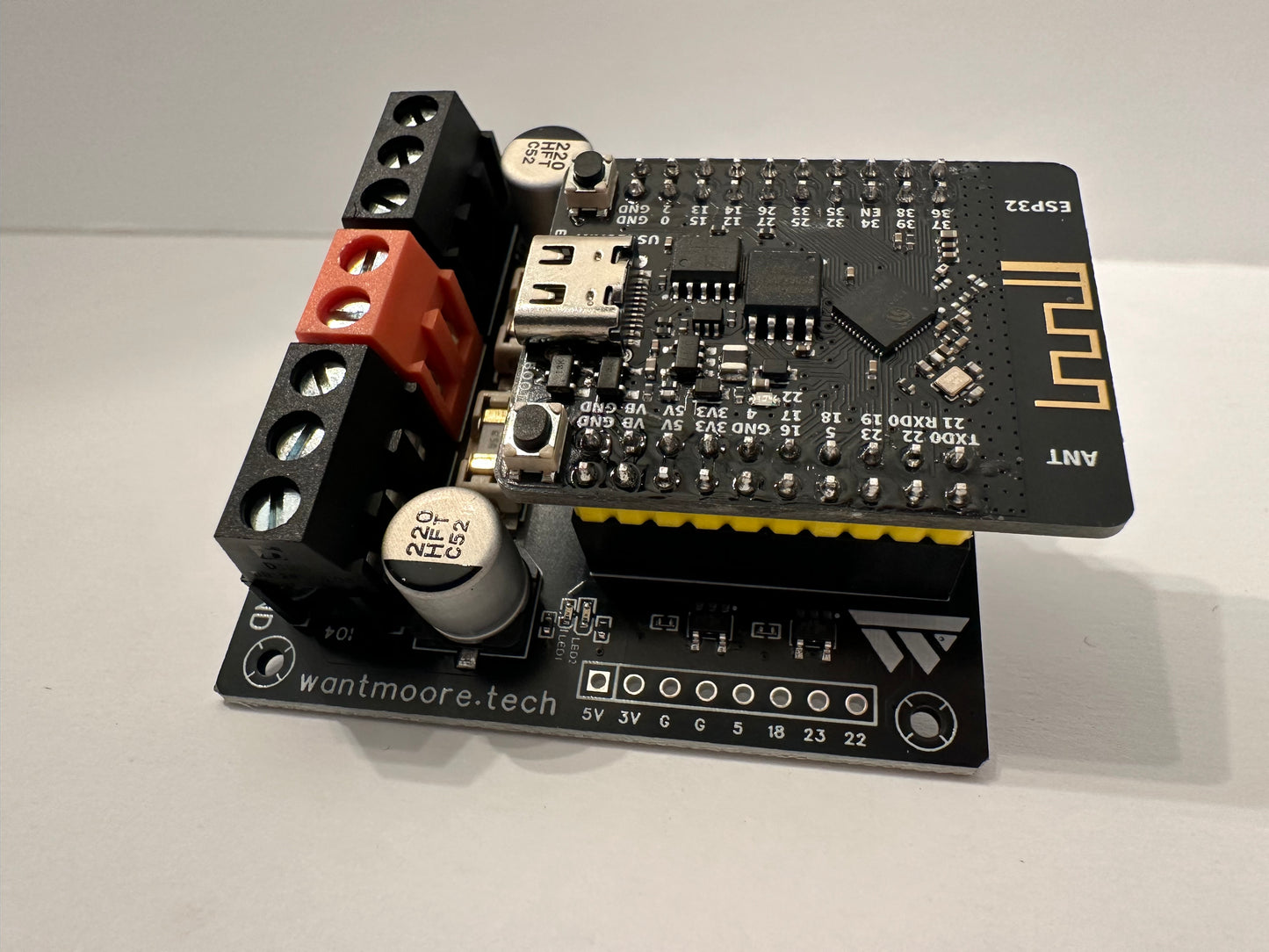

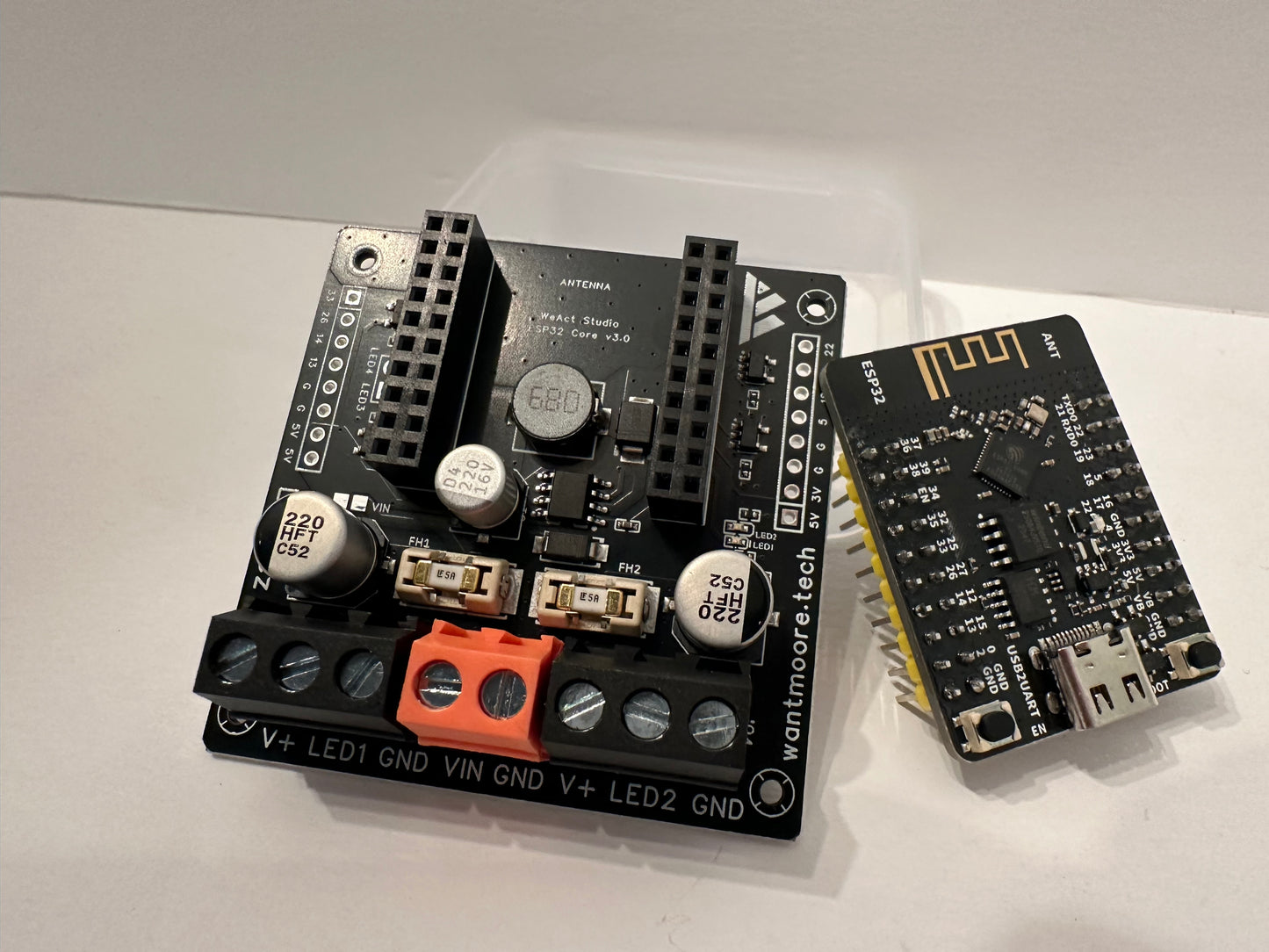

All new in 2.0 - a switch to a replaceable ESP32 module from WeAct Studios. This is a great dual-core ESP32 board and has an on-board USB-C connector for reflashing in the field if necessary, with no extra hardware needed.

3D Printed cases also available for sale!

Voltage: 12V or 24V Native (5v possible - see note below)
Software: WLED 0.14.3 pre-installed

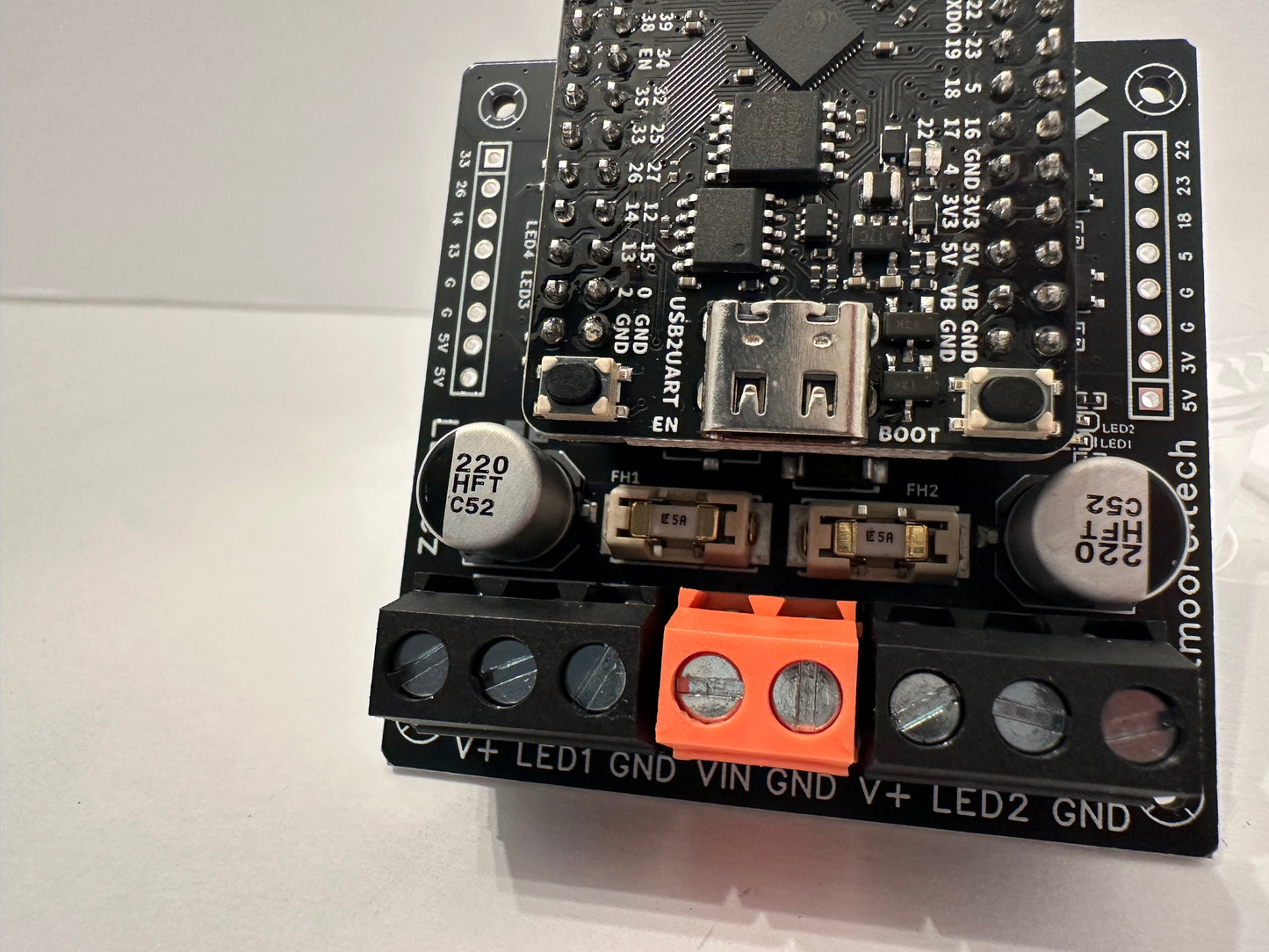

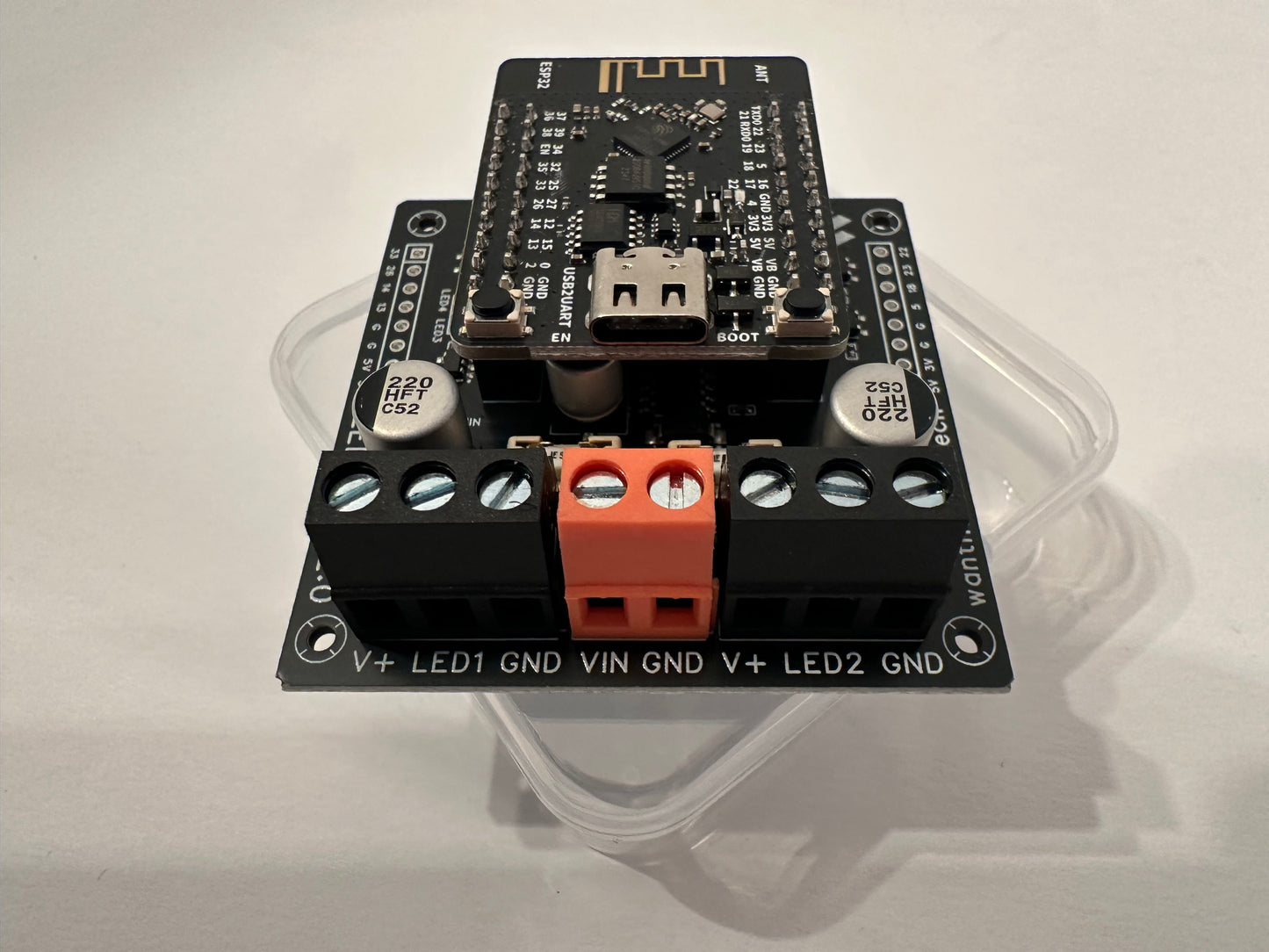

Connectors: 5.08mm terminal blocks
Board dimensions: 55mm x 55mm
What's Included: LEDeez v2.0, 2x spare 5A fuses.

While there are expansion capabilities available on the board, header pins are not pre-assembled. Grab some from Amazon if you have a need for them.

5V Capability: If you're feeling adventurous, you can bridge two solder pads on the board to make it operate on a 5V input for use with 5V LED strings/strips.

LED strings not included.

The LED output GPIO pin assignments are as follows:
LED1 = 16
LED2 = 4
LED3 = 2
LED4 = 32

3D Printed Case

• Purchase here for $2.50!
• MakerWorld (3MF, STL, STEP)
• Printables (STL, STEP)

Changelog

v2.0 - Original Release

Disclaimer: While I have made every effort to test the device, this is a hobby-grade project. Additional assembly or tinkering may be required to add additional accessories or achieve your expected results beyond stock functionality. I cannot be responsible for troubleshooting or replacing boards used incorrectly.
