Wantmoore's LEDeez

miniDEEZ (5V)

miniDEEZ (5V)

Regular price $10.00
Regular price $12.50 Sale price $10.00
Sale Sold out
Shipping calculated at checkout.


The new and improved miniDEEZ v1.2 is an ESP8266-based addressable LED controller with 4MB of flash (AiThinker ESP-12F module). The board is designed to accept *only 5V DC* input to control addressable 5v LEDs such as the WS28xx & SK6812 LEDs. An onboard button connected to GPIO 0 makes turning LEDs on/off in WLED super convenient. There is a single-channel Texas Instruments SN74LV1T34DBVR level-shifter onboard connected to GPIO2.

Software: WLED 0.13.3 pre-installed

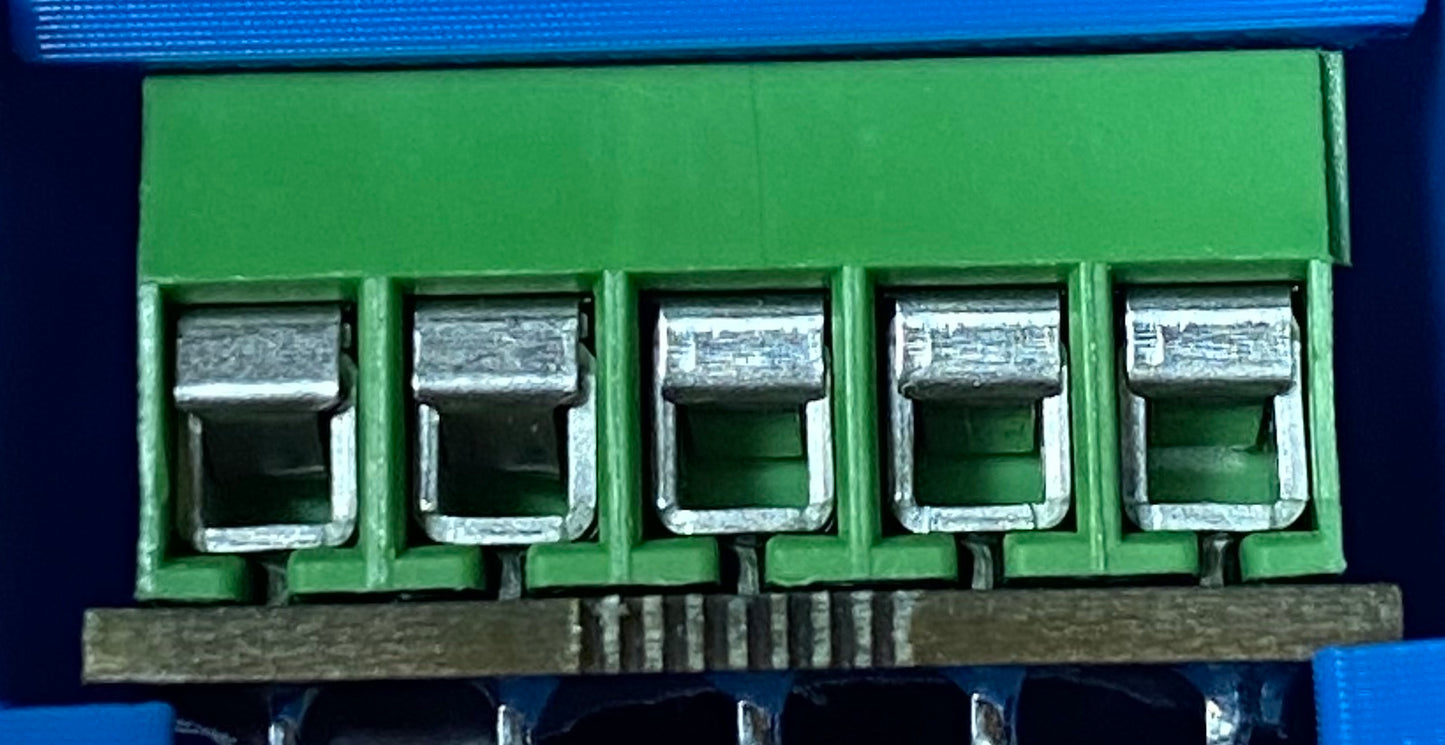

Connectors: 5-position terminal strips
2x JST-SH 6P Connectors for expansion: 3V3, GND, IO0, TX/IO1, RX/IO3, IO4,IO5, A0 and EN
Board dimensions:
 27mm x 44mm

- Replaced flashing header and expansion pads with two JST-SH 6P connectors (2022-11-28)
v1.1 - Removed extra TX pad, Added pad for A0 and GND (2022-09-30)
v1.0 - Original Release (2022-07-21)

Disclaimer: While I have made every effort to test the device, this is very much a hobby-grade project. Some additional assembly or tinkering may be required to add additional accessories or achieve your expected results. I cannot be responsible for troubleshooting or replacing boards used incorrectly.
